| ชื่อแบรนด์: | LIGHT-BO |
| เลขรุ่น: | LB4422IJ1S |
| ขั้นต่ำ: | 1,000 |
| ราคา: | Negotiate |
| เงื่อนไขการจ่ายเงิน: | T/T, เวสเทิร์นยูเนี่ยน, |
| ความสามารถในการจําหน่าย: | 20000 pcs/day |
Super Bright Green 4-Digit 7-Segment Common Anode LED Display for Gas Oven
Product Description
Introducing the Light-Bo Super Bright Green 4-Digit 7-Segment Common Anode LED Display—a high-performance, industry-grade numeric display tailored for gas ovens, mini ovens, microwaves, and other home appliances. With its compact 44×22mm design, super bright green illumination, and robust common anode configuration, this display delivers clear readability, low power consumption, and long-term stability—ideal for demanding household and industrial applications.
As a standard-type display from Guangdong, China, it meets RoHS compliance, integrates seamlessly with standard ICs, and supports high-volume production (up to 20,000 pieces per day), making it a reliable choice for appliance manufacturers worldwide.
Key Features
Super Bright Green lumination: Emits vivid, high-contrast green light (50-60mcd luminous intensity) for clear readability, even in bright kitchen environments.
Common Anode Configuration: Simplifies circuit integration with appliance control boards and standard driver ICs, reducing design complexity.
High-Contrast Aesthetic: White segments on a black surface (with protective film) ensure numeric output, perfect for displaying temperatures, timers, or cooking modes.
Compact & Standard Size: Outer dimensions of 44×22mm fit seamlessly into gas oven and small appliance control panels.
Energy-Efficient Design: Extremely low current (5-10mA per LED) and low power consumption, optimizing appliance energy efficiency.
Durable & Reliable: Stable performance, long lifespan, and RoHS compliance meet global safety and environmental standards for home appliances.
Easy Assembly: Designed for hassle-free PCB mounting, accelerating production workflows for manufacturers.
Product Specifications
| Category | Parameter | Specification |
|---|---|---|
| Basic Information | Brand Name | Light-Bo |
| Type | Standard 4-Digit 7-Segment LED Display | |
| Polarity | Common Anode | |
| Display Type | 4-Digit 7-Segment Numeric Display | |
| Outer Dimensions | 44 × 22mm | |
| Segment Configuration | White segments on black surface (with protective film) | |
| Optical Performance | Emitting Color | Super bright green (red/blue/yellow green/pure green/amber/orange/pure white available) |
| Luminous Intensity | 50-60 mcd | |
| Electrical Parameters | Forward Voltage (VF) | 1.8-2.3V per LED |
| Forward Current | 5-10mA per LED | |
| Compliance & Durability | Compliance | RoHS Compliant |
| Core Advantages | High luminous intensity, low power consumption, stable performance, long lifespan | |
| Compatibility | IC compatible (works with standard driver ICs) |
Manufacturing & Order Details
| Order Parameter | Details |
|---|---|
| Minimum Order Quantity (MOQ) | 1000 Piece/Pieces |
| Trade Term | EXW (Ex Works) |
| Payment Terms | T/T (Telegraphic Transfer), WU (Western Union) |
| Place of Origin | Guangdong, China (Mainland) |
| Production Capacity | 20,000 pcs / day |
| Packing | EPE (Expandable Polyethylene) + Carton (protective for bulk shipping) |
| Delivery Date | 10-15 days (after order confirmation and payment) |
| Means of Transport | Ocean (for bulk orders), Air (for urgent orders), Land (domestic/nearby regions) |
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
|
Chromaticity Coordinates
|
X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |

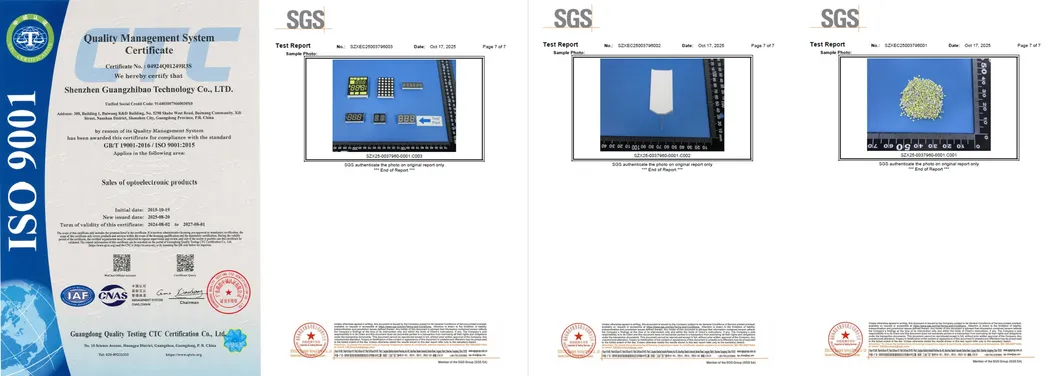

Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo) stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .
Light Bo has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

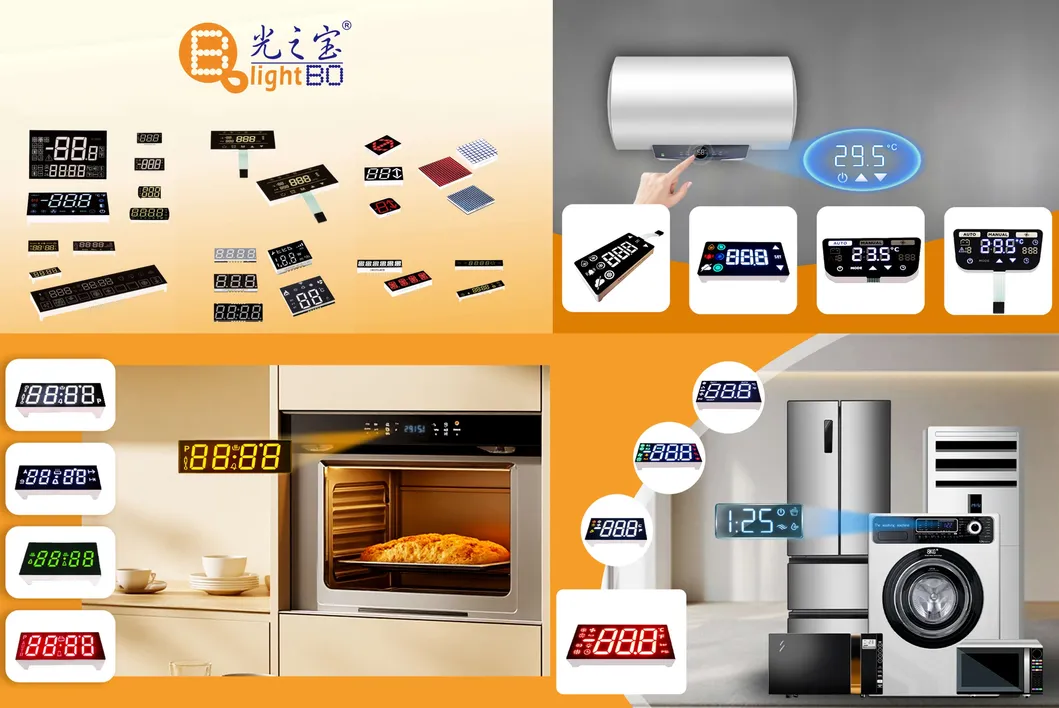

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ?
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time?
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment?
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices?
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list?
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products?
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else?
A: Yes , we will not show it or sell to others without your authorization.
Q13 What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods?
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products?
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
